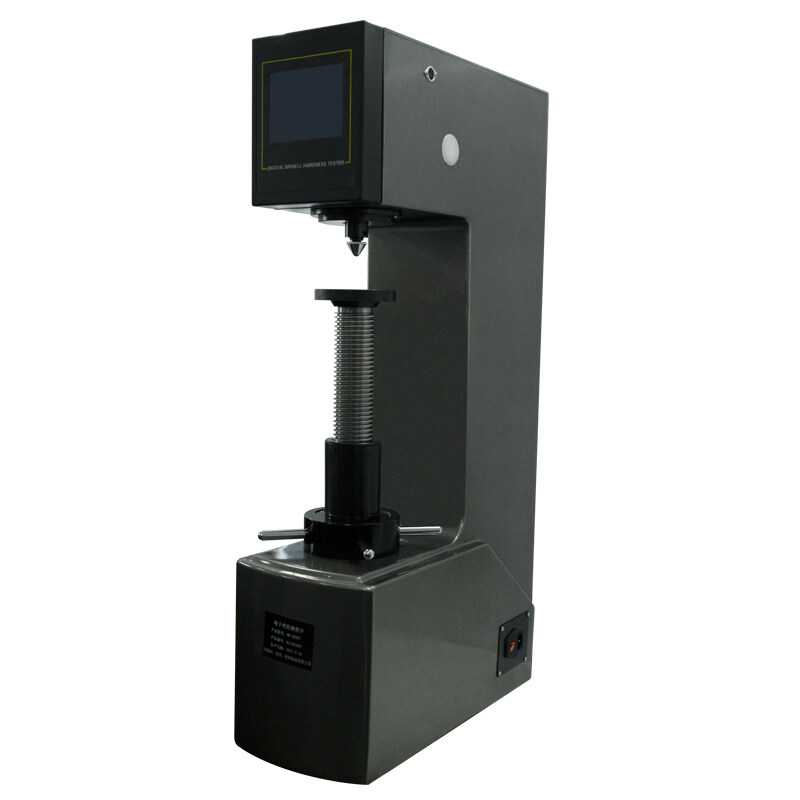

HB-3000C Electronic Brinell hardness tester

The electronic Brinell hardness test is mainly used to determine the hardness of cast iron, steel, non-ferrous metals and soft alloys, and it can also be used to determine the hardness of some non-metallic materials such as hard plastics and bakelite. The hardness tester removes the loading weight, adopts an electronic automatic loading system, has a ten-level test force, has a wider test range and higher accuracy. It is suitable for factories, workshops, laboratories, universities and research institutions. The test is mainly used to determine the hardness of cast iron, steel, non-ferrous metals and soft alloys.
Eliminates the loading weights and adopts an electronic automatic loading system, With ten-level test force, the test range is wider and the accuracy is higher.

主な技術的パラメータ:

モデル HB-3000C
Brinell hardness scale HBW2.5/62.5、HBW2.5/187.5、HBW5/125、HBW5/750、HBW10/100、HBW10/1500、HBW10/3000、HBW10/250、HBW10/500、HBW10/1000
試験力 62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N)、1000kgf(8907N)、1500kgf(14710N)、3000kgf(29420N)
Max. Height of sample 280mm
Min. Measurement unit 0.01ミリメートル
Dwell time 5~60s
Hardness testing range 8〜650HBW
Distance from indenter center to the wall 150mm
硬度の読み Comparison with hardness form
電圧 AC220+5%, 50~60Hz
寸法 532*235*930mm
重さ 123kg
