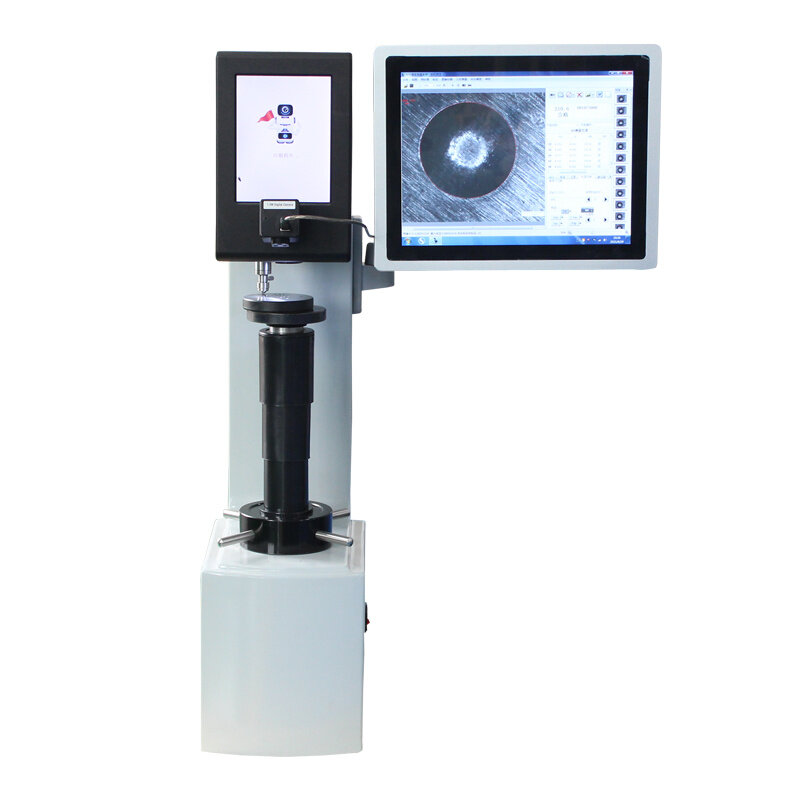

The HBST-3000Z Computerized Brinell Hardness Tester features a cast-iron body for enhanced rigidity and high measurement accuracy. Its precision-engineered structure uses a force sensor for direct control of the test force, enabling a compact design and ensuring smooth, stable application and release of force. This tester is ideal for measuring the hardness of cast iron, steel non-ferrous metals, soft alloys, as well as hard plastics, bakelite, and selected non-metallic materials.
特徴
1. An industrial tablet PC is mounted on the machine body, equipped with an industrial-grade camera and CCD image processing software. It supports both manual and automatic image measurements, and allows direct export of test data and images, ensuring efficient and user-friendly operation;
2. The testing process is CPU-controlled, with automatic switching between the objective lens and indenter. Mechanical and electronic coordination ensures precise alignment and improved positioning accuracy. The built-in touchscreen and microprocessor provide intuitive parameter settings and real-time result display for enhanced usability;
3. The system offers 11 levels of test force, supports 15 Brinell hardness scales and 14 conversion scales, making it suitable for awide range of metallic materials;
4. Integrated with a Windows 7-based computer, the tester includes full PC functionality. Test results can be automatically exported into Word or Excel reports, with options for direct saving or printing.
Technical Data
| モデル | HBST-3000Z |
| Testing Force | 31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf(306.45N, 612.9N, 980.7N, 1266N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N) |
| 測定スケール | BW2.5/31.25, HBW2.5/62.5, HBW5/31.25, HBW5/62.5, HBW5/125, HBW10/100, HBW10/1 25, HBW2.5/187.5, HBW5/250, HBW10/250, HBW10/500, HBW5/750, HBW10/1000, HBW10/1500, HBW10/3000 |
| Hardness Testing Range | 8〜650HBW |
| Method of Applying Test Force | Automatic (Loading / Holding / Unloading) |
| 硬度の読み | 8-inch Integrated Touchscreen, 14-inch Touchscreen All in-One Computer |
| Camera Resolution | 3 Megapixel Resolution |
| 変換スケール | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| データ出力 | Integrated Printer with RS232 Interface |
| Switching Between Objective Lens and Indenter | Automatic Switching |
| Micrometer | 20X Digital Measuring Eyepiece |
| Smallest Scale Value of the Micrometer Drum | 0.001ミリメートル |
| 保持時間 | 0~60S |
| Distance from the Center of the Indenter to Wall | 150mm |
| 最大サンプル高さ | 280mm |
| CCD Measurement Method | Automatic or Manual |
| 電源 | AC220V 50HZ |
| Applicable Standards | ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2 |
| 寸法 | 580x560x930mm |
| 重さ | 135kg |
