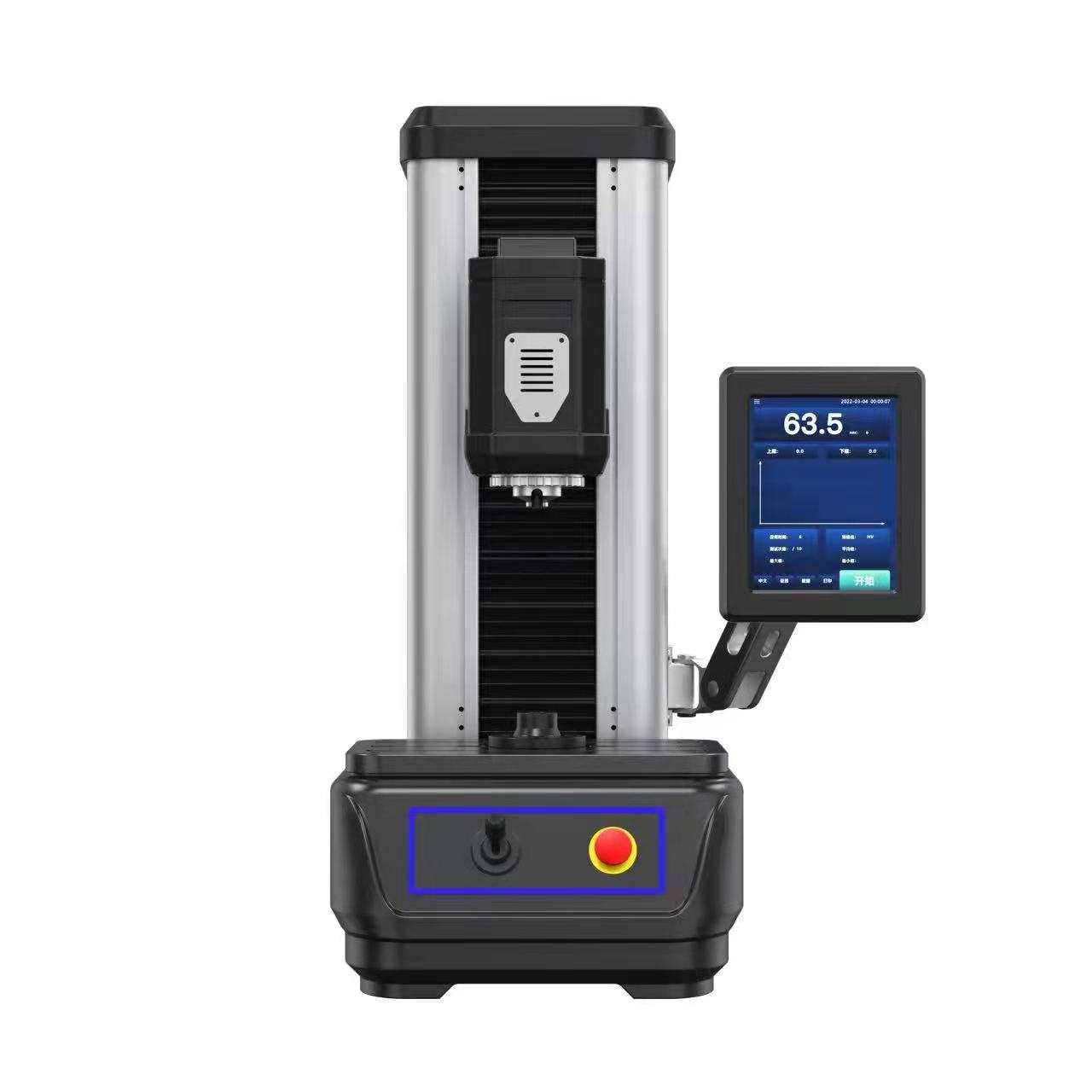

10MHRS-150J 10MHRS-150J precision Rockwell, surface Rockwell and double Rockwell hardness tester (head moving type) adopts closed-loop sensor control technology to realize fully automatic control and hardness testing process. The loading system adopts high-precision force sensors and the central controller to form a closed-loop loop to control the whole process of loading. The sounding system adopts high precision displacement sensor, which can obtain a hardness value resolution of 0.1HR.The machine stage is fixed, and the hardness test is performed by the indenter moving up and down. The fixed test bench can eliminate the coaxiality error caused by the up and down rotation of the traditional lead screw, improve the accuracy and repeatability of the test, and also increase the stability and efficiency of the machine. E-mail: sales@trojanchina.com Download Contact Us Send E-mail
| model | 10MHRS-150J | ||
| control system | precision step control system | ||
| loading time | 1–60秒 1—60S | ||
| platform | High-precision linear slide guide lifting platform | ||
| Rockwell initial test force | 10kgf | 3kgf | 3kgf、10kgf |
| Rockwell initial test force | 98.07N | 29.4N | 29.4N、98N |
| Rockwell total test force | 60kgf、100kgf、150kgf | 15kgf、30kgf、45kgf | 15kgf、30kgf、45kgf、60kgf、100kgf、150kgf |
| Rockwell total test force | 588.4N、980.7N、1471N | 147.1N、294.2N、441.3N | 147.1N、294.2N、441.3N、588.4N、980.7N、1471N |
| Rockwell Scale | HRA HRB HRC HRD HRE HRF HRG HRH HRK HRL HRM HRP HRR HRS HRV | HR15N HR30N HR45N HR15T HR30T HR45T HR15W HR30W HR45W HR15X HR30X HR45X HR15Y HR30Y HR45Y | HRA HRB HRC HRD HRE HRF HRG HRH HRK HRL HRM HRP HRR HRS HRV HR15N HR30N HR45N HR15T HR30T HR45T HR15W HR30W HR45W HR15X HR30X HR45X HR15Y HR30Y HR45Y |
| Test Range | HRA:20-95 HRB:10-100 HRC:10-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:50-115 HRM:50-115 HRR:50-115 HRP:50-115 HRS:50-115 HRV:50-115 | HR15N:70-94 HR30N:42-86 HR45N:20-77 HR15T:67-93 HR30T:29-82 HR45T:10-72 | HRA:20-95、HRB:10-100、HRC:10-70、HRD:40-77、 HRE:70-100、HRF:60-100、HRG:30-94、HRH:80-100、HRK:40-100、HRL:50-115、HRM:50-115、HRR:50-115、 HR15N:70-94、 HR30N:42-86、 HR45N:20-77、 HR15T:67-93、 HR30T:29-82、 HR45T:10-72 |
| Indenter Specifications | Diamond cone Rockwell indenter, Φ1.5875mm steel ball indenter | ||
| Executive Standard | ISO 6508，GB/T230，JJG112，ASTM E18 | ||
| Conversion scale | HR、HB、HV、HK | ||
| Hardness reading | LCD digital display | ||
| Data output | RS-232 interface Built-in Bluetooth USB interface | ||
| height from indenter to table | 280mm | ||
| Distance from the center of indenter to body | 170mm | ||
| Power supply | AC90-240V 50-60Hz | ||
| Dimension (L*W*H) | 700*500*910mm | ||
| Net weight of machine | 220kg | ||
HRS-150ZD Full Rockwell Hardness Tester is an electronically-loaded Rockwell hardness tester. Simply press the start button, and the worktable automatically rises. Upon contact with the indenter, the system auto-loads, auto-unloads, and displays hardness values automatically, meeting various Rockwell hardness testing requirements.
Featuring a sleek design, comprehensive functionality, user-friendly operation, clear and intuitive display, and stable performance.
