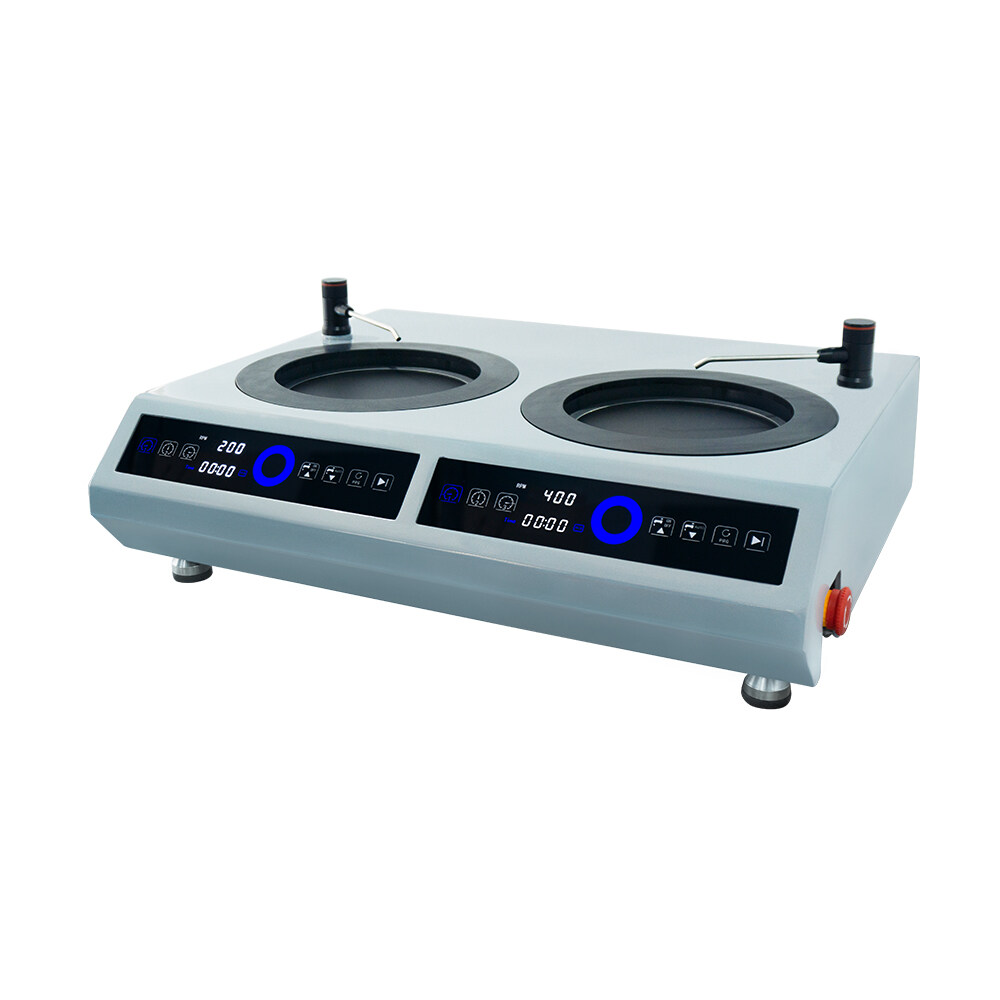

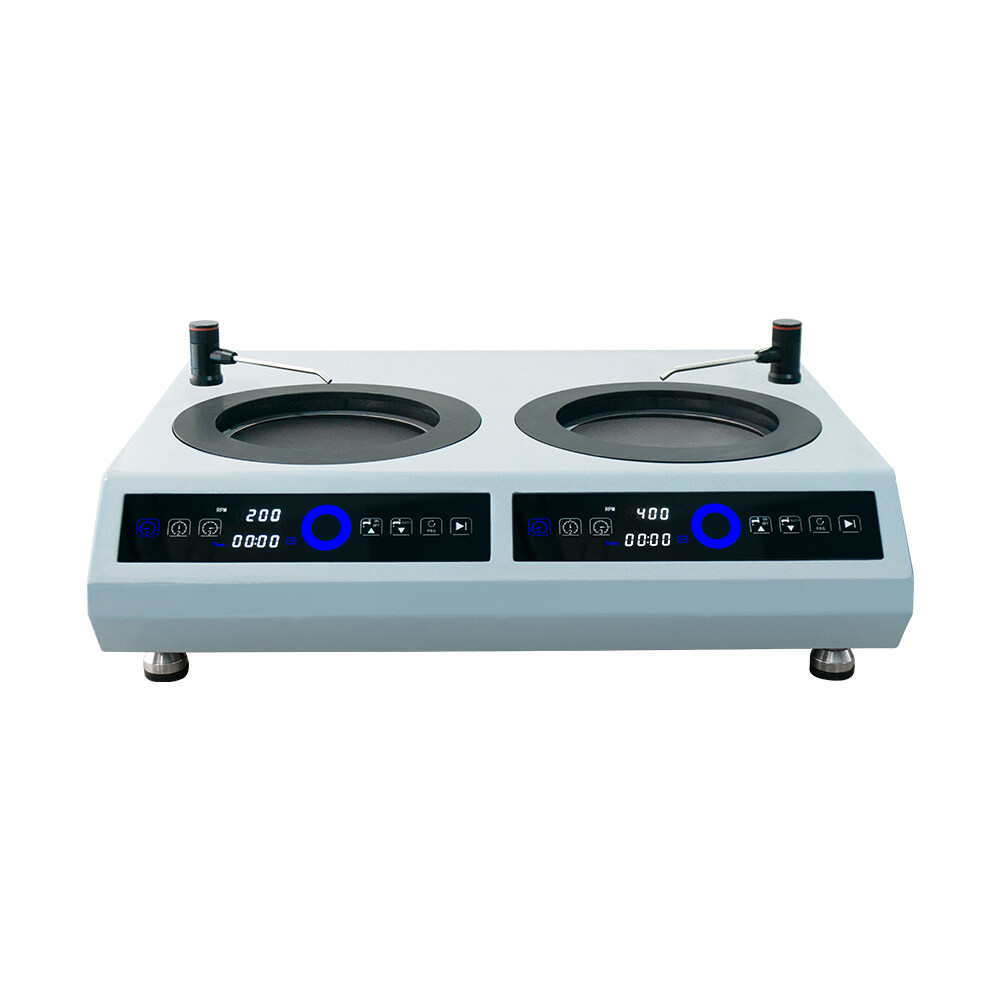

Alpha-208 is an 8″(203mm)disc diameter, double disc, double control grinding and polishing machine. The machine is small in size, compact in structure and easy to operate. Adopting the popular touch panel, it is especially suitable for grinding and polishing of various specimens.
Features
1. Using servo motor, maintain high torque even at low speed;

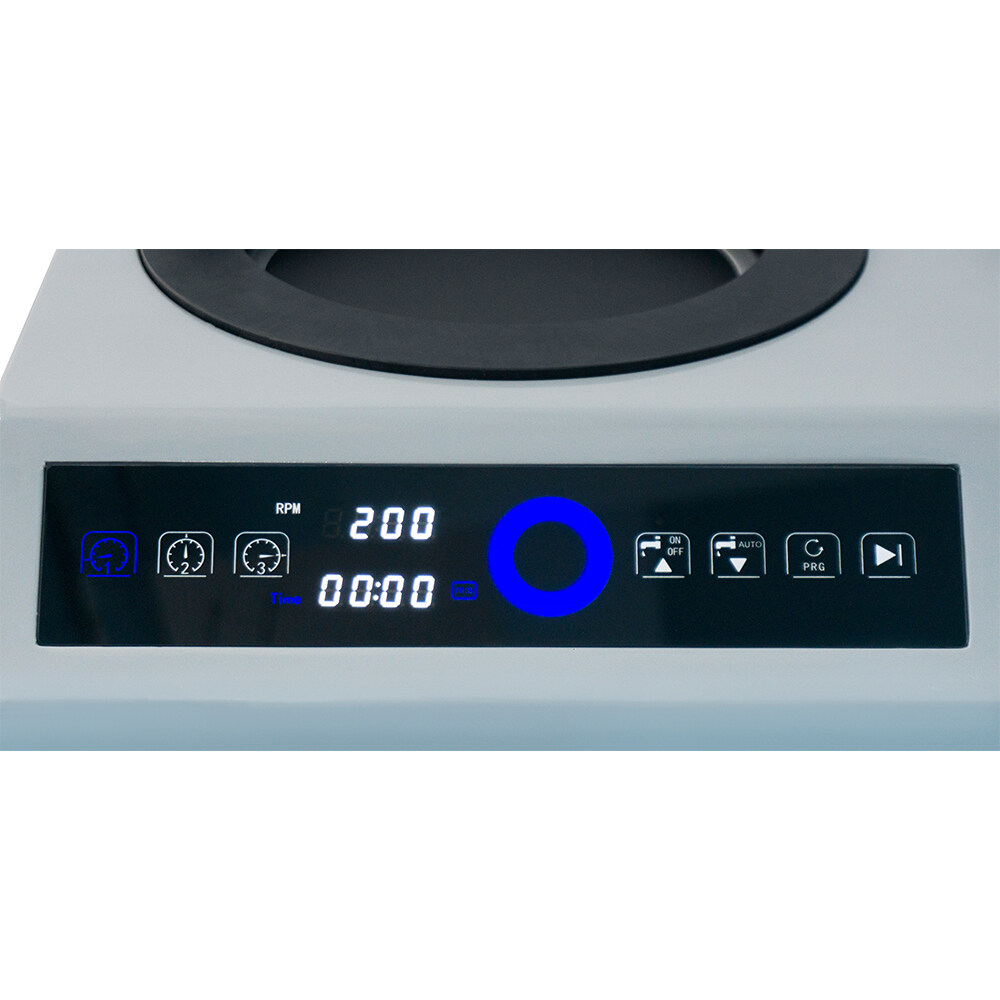

2. Using glass touch panel, simple to operate and easy to use;
3. Adopts fully sealed design in the working tray, no water will leak into the equipment even if there is water inside the tray;

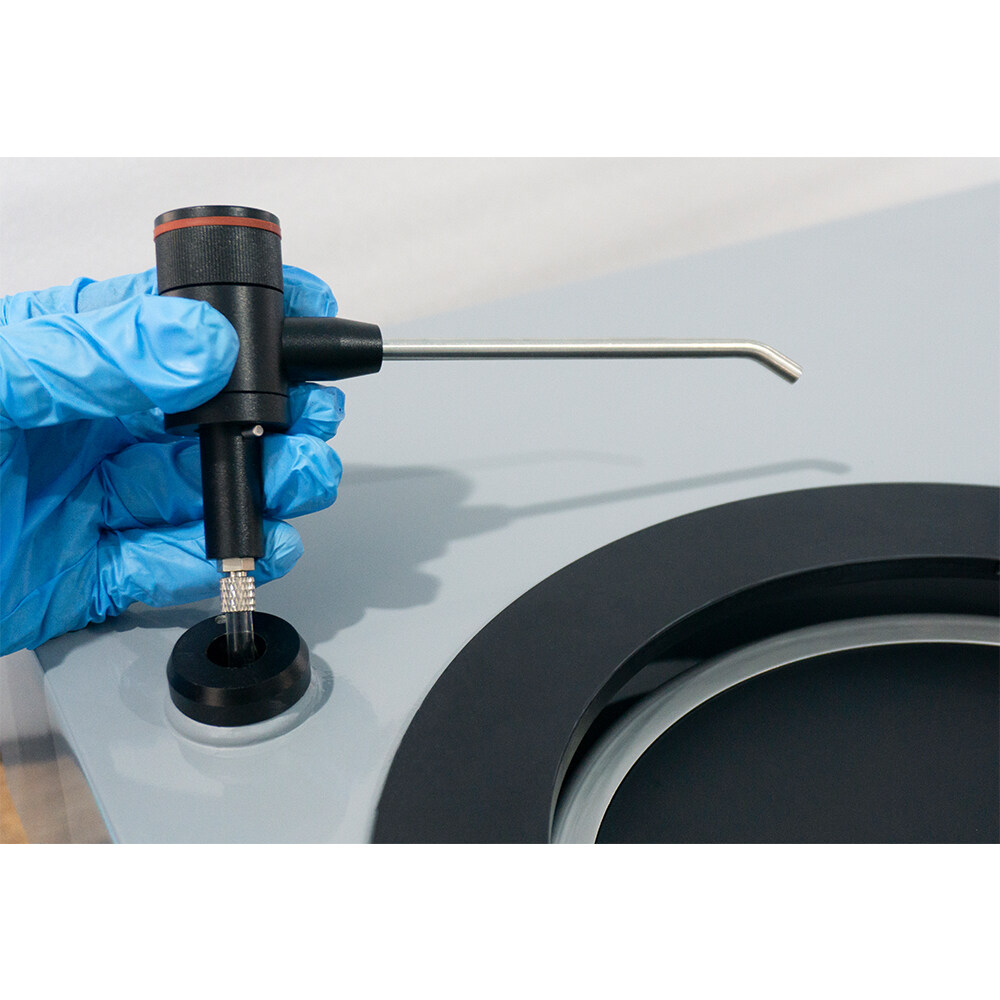

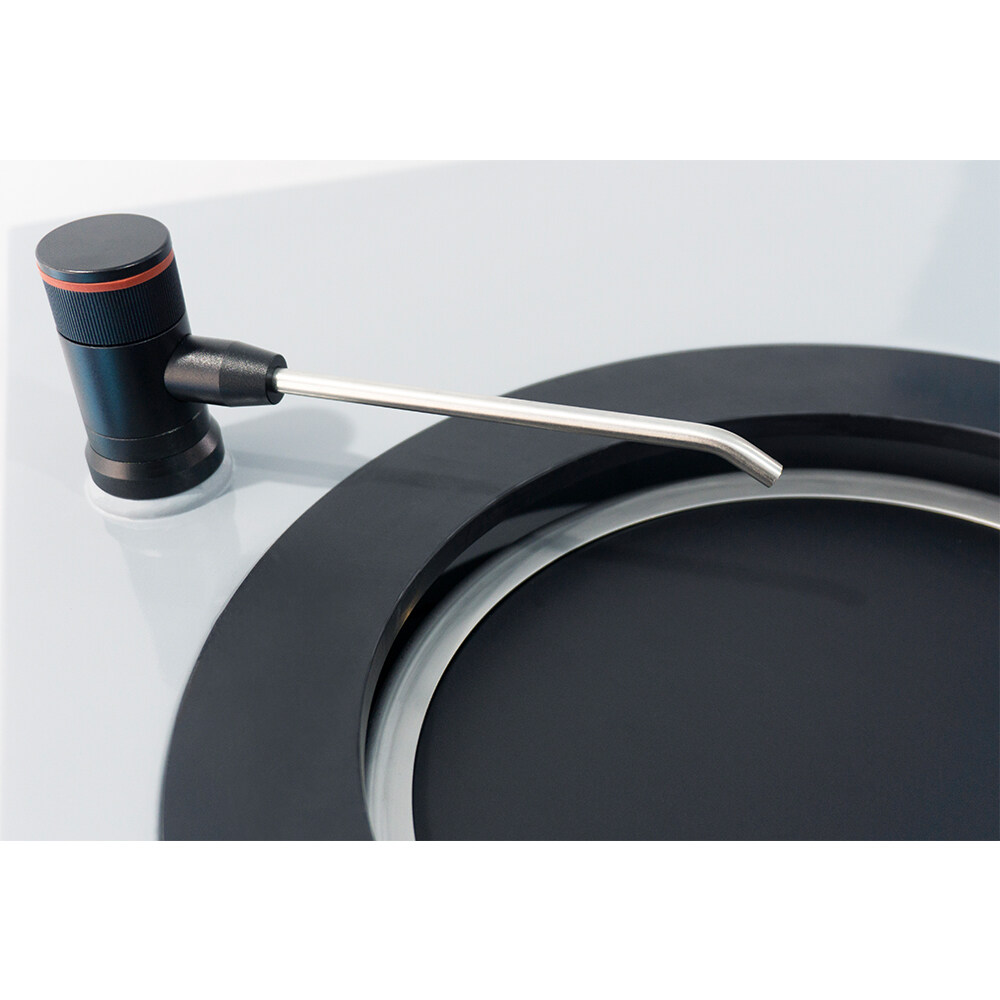

4. Retractable faucet for easy cleaning and washing;
5. No tools are needed to disassemble the working plate, and the disassembly is extremely convenient;
6. ABS molded shell, small and beautiful, high strength.
Technical parameter
| Model | Alpha-208 | |
| Wheel | Diameter | 8″(203mm) |
| Speed | 50-600rpm（50-1000rpm Special requirements） | |
| Direction | CW/CCW | |
| Torque | 10N.m | |
| Electronic | VoltagelFrequency | 220V/50Hz (1Ph/N/PE) |
| Rated Power | 1500W | |
| Rated Current | 8A | |
| Control |
Panel | Tempered glass, Touch panel |
| Preset 3 Speeds | Yes | |
| Timing/Countdown | Yes | |
| Water Supply | Maximum water pressure | <0.3MPa |
| Inlet connector | G 3/4 (Male) | |
| Outlet diameter | OD=Φ32mm(1-1/4 inch) | |
| Circulating water tank | Optional | |
| Noise | Measured at a distance of 1 meter | <50dB |
| Operating Environment | Tempersture | -20˚C – 60˚C (-4°F -140°F) |
| Humidity | 0-95%RH | |
| Dimension | WxDxH | 672×575×280mm |
| Weight | 34kg | |
