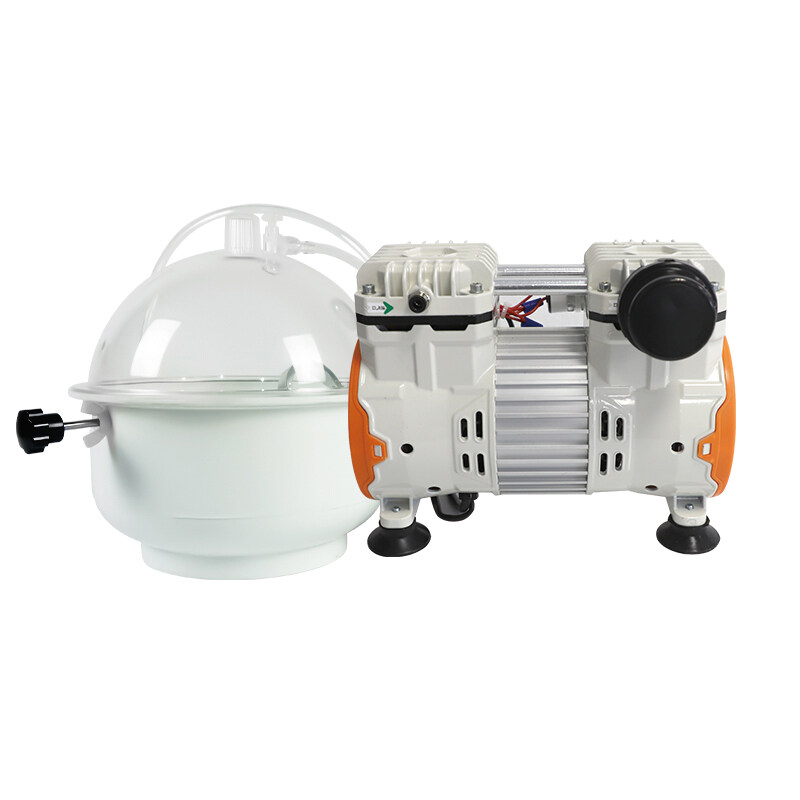

Theta Vacuum Cold Mounting Machine Product Description Theta Vacuum is a cold mounting machine that has integrated a vacuum pump and a vacuum device. The machine can ensure that the specimen does not contain bubbles after curing while the physical and chemical properties of the resin& curing agent will not change. So it can be used for rapid curing of cold mounting on Epoxy resins and make high-quality specimen.
Features
1. The irritating odor produced during the polymerization process can be minimized since the whole process is operated in a separate closed container;
2. The generation of air bubbles during the polymerization process can be avoided when operating in a vacuum environment, especially suitable for cold mounting of porous specimen;
3. The whole process is visible and easy to operate due to transparent cover design;
4. The big space can meet the needs of various specifications of sample mounting.
Technical Parameters
| Theta Vacuum | |
| Vacuum chamber diameter | 250mm |
| Vacuum chamber | 9.2 Liter |
| Mounting way | Filling with a telescopic rod |
| Vacuum | 50 Pa |
| Noise | <50 dB |
| voltage | AC 220V, 50HZ |
| Power | 370 W |
| Dimesion (W*D*H) | Φ300*300mm(Vacuum chamber) |
| Weight | 1kg (Vacuum chamber) |
Based in China, TROJAN pays attention to the international market, and has sold metallographic equipment to more than 50 countries, such as Europe, America, Japan and South Korea, Southeast Asia countries and regions
