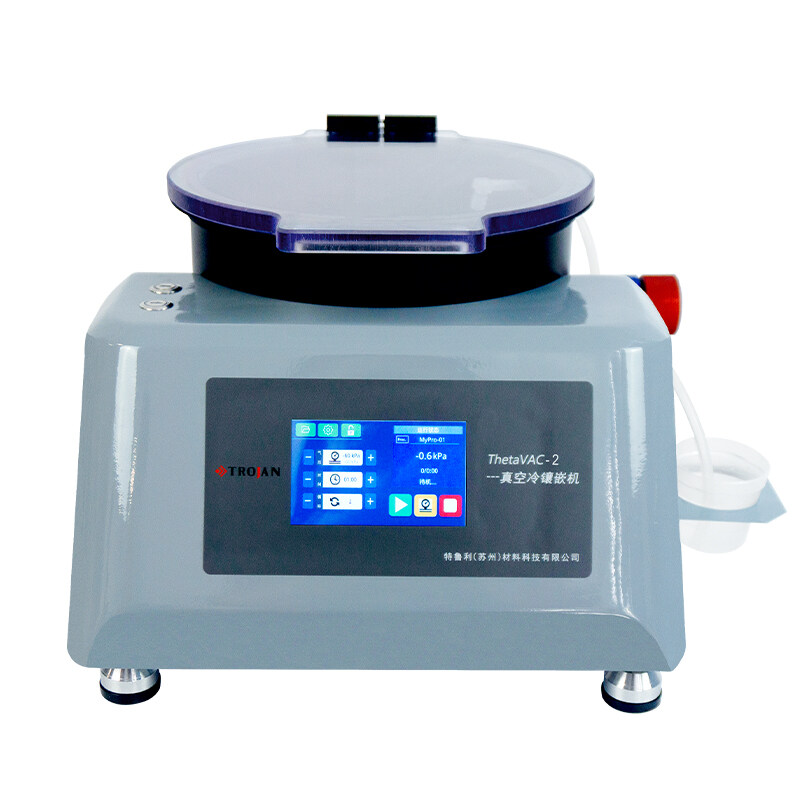

ThetaVAC-2 is a program-controlled vacuum mounting machine. This system is ideal for vacuum embedding with epoxy resin, offering excellent porosity impregnation capabilities. It allows the epoxy resin to penetrate small pores and cracks quickly and effectively, ensuring edge protection and thorough filling of the sample. The ThetaVAC-2 is particularly well-suited for preparing porous materials and is widely used in the preparation of failure analysis samples for cracked components, porous castings, composite materials, as well as electronic components, rocks, minerals, and ceramics.
Product Features
Technical parameter
| ThetaVAC-2 | ||
| Electrical | Power Supply | 100-240V, 50Hz, 35W (excluding vacuum pump) |
| Control Panel |
5” touch screen | |
| Timing Cycle |
Timing range: 0-10min, automatic air extraction / deflation, automatic circulation | |
| Maximum number of cycles |
100 | |
| Program |
20 sets | |
| Vacuum | Vacuum Level | 0 ~ -90kpa |
| Maximum Vacuum Flow | 75L/min | |
| Air Consumption | 28-42L/min | |
| Noise | 55-60dB | |
| Chamber | Diameter | The inner diameter is Φ252, and 12 Φ40 samples can be placed at the same time |
| Height | For molds with diameter less than 100mm, the maximum height is 100mm; Molds with diameter greater than 100mm, the maximum height is 80mm. | |
| Control |
Button inching, direction:clockwise /counterclockwise | |
| Operating Environment |
Temperature |
0-60˚C |
| Humidity |
0-95%RH | |
| Oil-free vacuum pump | Voltage | Same as input voltage |
| Power | 350W | |
| Cable Connector |
Chinese standard plug | |
| Dimension | W*D*H | 507×464×267mm (Close), 507×464×644mm(Open) |
| Weight | 18kg | |
